ISUZU GIGA
FVM 34 W
*) Estimasi harga on the road 2017 dan locco jakarta.
*) Harga dapat berubah-ubah tanpa pemberitahuan terlebih dahulu.
SPESIFIKASI
| Dimensi | ||
|---|---|---|
| Panjang Keseluruhan | 11480 | (mm) |
| Lebar Keseluruhan | 2400 | (mm) |
| Tinggi Keseluruhan | 2860 | (mm) |
| Jarak Terendah | 235 | (mm) |
| Jarak Poros Roda | 7120 | (mm) |
| Jarak Pijak Roda Depan | 1970 | (mm) |
| Jarak Pijak Roda Belakang | 1845 | (mm) |
| Seating Capacity | - | (person) |
| Front Axle Capacity | - | (kg) |
| Rear Axle Capacity | - | (kg) |
| Mesin | ||
|---|---|---|
| Model/Tipe | 6HK1-TCN | |
| Sistem injeksi bahan bakar | Inline Six Cylinder, OHC, Direct Injection Diesel | |
| Isi silinder | 7790 | (cc) |
| Tenaga maksimum | 240/2400 | (PS/rpm) |
| Torsi maksimum | 72/1450 | (Kgm/rpm) |
| Garis tengah x langkah | 115x125 | (mm) |
| Kapasitas Tangki | 200 | (liter) |
| Ban & Velg | ||
|---|---|---|
| Ukuran ban | - | |
| Bahan | - | |
| Ban Depan | 10.00-20-16PR (Miler) | |
| Ban Belakang | 10.00-20-16PR (Miler) |
| Berat | ||
|---|---|---|
| Curb Weight (berat kosong) | 6693 | (kg) |
| Gross Vehicle Weight (berat total) | 26000 | (kg) |
| Transmisi | ||
|---|---|---|
| Model | MZW6P | |
| C | - | |
| gigi 1 | 6.615 | |
| gigi 2 | 4.095 | |
| gigi 3 | 2.358 | |
| gigi 4 | 1.531 | |
| gigi 5 | 1.000 | |
| gigi 6 | 0.722 | |
| gigi 7 | - | |
| gigi 8 | - | |
| Rev | 6.615 | |
| Final Gear Ratio | 7.167 |
| Fitur & Standard | ||
|---|---|---|
| Air Conditioning | - | |
| Radio CD+MP3 | Yes | |
| Power Steering | Yes |
| Lain-Lain | ||
|---|---|---|
| Kursi supir | - | |
| Seat belt | Yes | |
| Accu | - | (V-AH) |
| Altertnator | 24-50 | (V-A) |
| Kapasitas Tangki | 200 | (liter) |
| Max. Gradeability | 21(6.66) 22(7.166) | (%) |
| Max. Speed | 98 (7.167) 105 (6.667) | (Km/h) |
| Clutch Size | - | (mm) |
DIMENSI & UKURAN

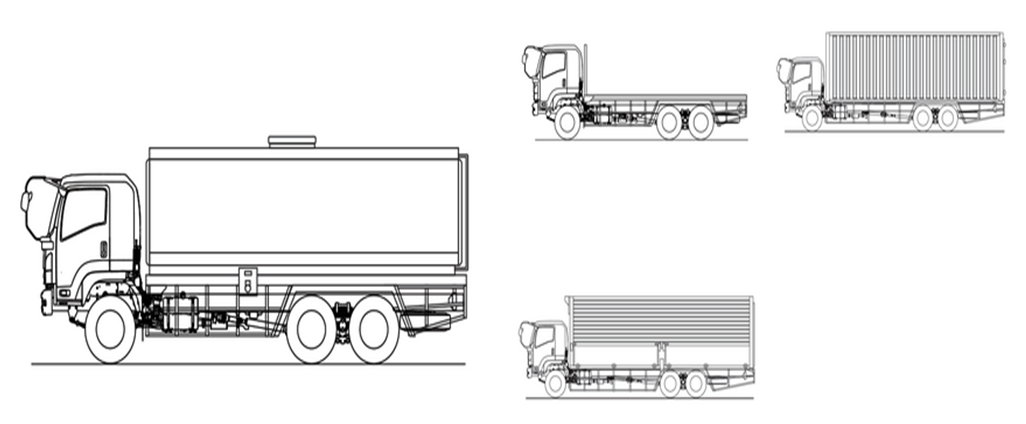

APLIKASI
