ISUZU C-SERIES
CYZ 51 Q
*) Estimasi harga on the road 2017 dan locco jakarta.
*) Harga dapat berubah-ubah tanpa pemberitahuan terlebih dahulu.
SPESIFIKASI
| Dimensi | ||
|---|---|---|
| Panjang Keseluruhan | 9775 | (mm) |
| Lebar Keseluruhan | 2490 | (mm) |
| Tinggi Keseluruhan | 2970 | (mm) |
| Jarak Terendah | 240 | (mm) |
| Jarak Poros Roda | - | (mm) |
| Jarak Pijak Roda Depan | 1400 | (mm) |
| Jarak Pijak Roda Belakang | 3125 | (mm) |
| Seating Capacity | - | (person) |
| Front Axle Capacity | 2065 | (kg) |
| Rear Axle Capacity | 1850 | (kg) |
| Mesin | ||
|---|---|---|
| Model/Tipe | 6WF1-TC | |
| Sistem injeksi bahan bakar | - | |
| Isi silinder | 14,256 | (cc) |
| Tenaga maksimum | 360/1800 | (PS/rpm) |
| Torsi maksimum | 145/1100 | (Kgm/rpm) |
| Garis tengah x langkah | - | (mm) |
| Kapasitas Tangki | - | (liter) |
| Ban & Velg | ||
|---|---|---|
| Ukuran ban | - | |
| Bahan | - | |
| Ban Depan | 11.00-20-16PR | |
| Ban Belakang | 11.00-20-16PR |
| Berat | ||
|---|---|---|
| Curb Weight (berat kosong) | 8.730 | (kg) |
| Gross Vehicle Weight (berat total) | 29.000 | (kg) |
| Transmisi | ||
|---|---|---|
| Model | MAL6U | |
| C | - | |
| gigi 1 | 6.000 | |
| gigi 2 | 4.007 | |
| gigi 3 | 2.342 | |
| gigi 4 | 1.468 | |
| gigi 5 | 1.000 | |
| gigi 6 | 0.724 | |
| gigi 7 | - | |
| gigi 8 | - | |
| Rev | 6.359 | |
| Final Gear Ratio | - |
| Fitur & Standard | ||
|---|---|---|
| Air Conditioning | - | |
| Radio CD+MP3 | - | |
| Power Steering | - |
| Lain-Lain | ||
|---|---|---|
| Kursi supir | - | |
| Seat belt | Yes | |
| Accu | 12-120x2 | (V-AH) |
| Altertnator | 24-50 | (V-A) |
| Kapasitas Tangki | 200 | (liter) |
| Max. Gradeability | 38 | (%) |
| Max. Speed | - | (Km/h) |
| Clutch Size | - | (mm) |

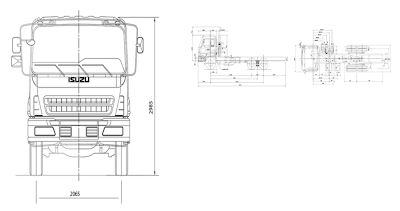

DIMENSI & UKURAN
APLIKASI
